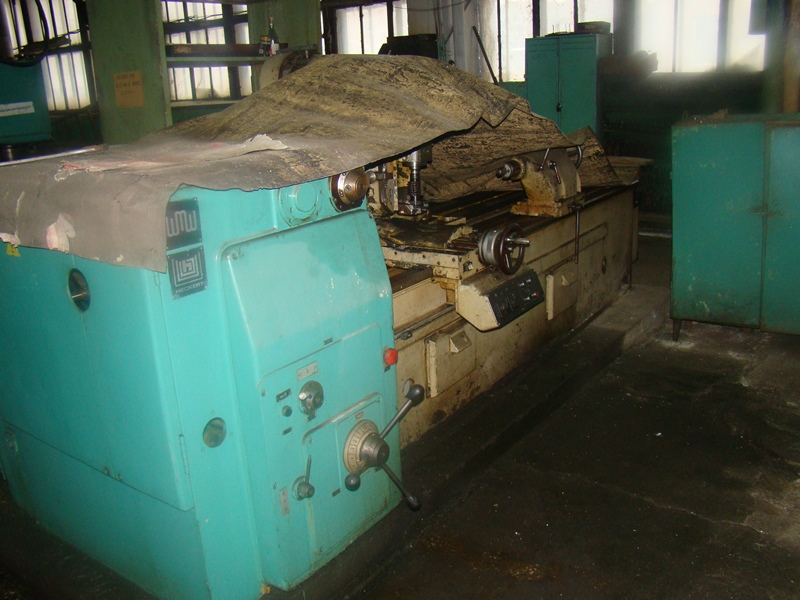

Thread milling machine HECKERT ZFWVG 250x2000

Offer #1622

Thread milling machine HECKERT ZFWVG 250x2000
Manufacturer: WMW Heckert
Made in: Germany

Specification:

Work-piece diameter over bed: 500 mm
Milling length: 2000 mm
Max. module: 7
Work-piece diameter over saddle: 250 mm
Center height over bed: 260 mm
Work-piece spindle bore: 102 mm
Tailstock quill adjustment: 100 mm
Number of teeth: 2-50
Revolution per min: 0,0032-2,6
Feeding, longitudinal milling: 0,25-198 mm/min
Main drive: 4 kW
Electrics-voltage/frequency: 380V; 50Hz
Total power requirement: 9,5 kW
Dimensions: 3700x2400x1600 mm
Total weight: 4300 kg
