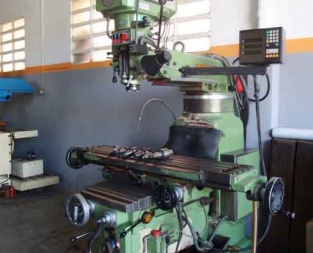

Vertical milling machine LAGUN mod. FTV-4 SP

  • More pictures
  • Videos
  • Print

Offer #996

Vertical milling machine LAGUN mod. FTV-4 SP
YOM: 1994
Manufacturer: LAGUN
Made in: Spain

Specification:

Table dimensions: 1372x280 mm
Table T-slots: 3x16 mm
Distance between slots: 63 mm
Travel:
  -Longitudinal: 800 mm
  -Transversal: 345 mm
  -Vertical: 500 mm
  -Ram: 570 mm
  -Spindle: 127 mm
Max work-piece weight: 250 kg
Spindle type: ISO 40
Clamping tool: Electro-pneumatic
Number of advances:
  -Longitudinal and Transversal: 12-576 mm
  -Vertical: 3,6-173 mm
Rapid Longitudinal and Transversal advances: 1650 mm
Head speed drive ranges: 50-3750 rpm
The head moves to the right and left: 90 degrees
The head tilts front to behind: 45 degrees
Total vertical power installed: 3,6 kW
Voltage: 380 V
Approximate weight: 1450 kg
