Offer #594

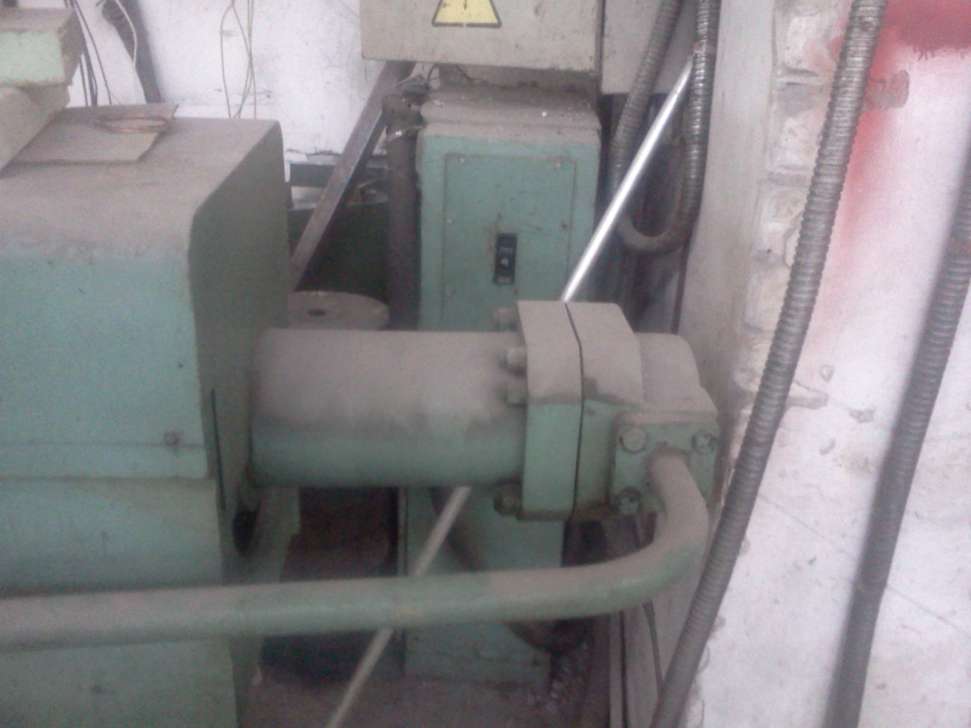

Horizontal semi-automatic broaching machine model 7B55
YOM: 1975
Manufacturer: Machine factory of S.M.Kirov
Made in: USSR (Minsk)

Specification:

Nominal force: 100 ton
Max stroke length of working slide: 1250 mm
Max adjusted stroke length of working slide: 1200 mm
Distance:
  -From bed to hole axis for faceplate in the basic plate: 250 mm
  -From basic plate to guiding auxiliary slides: 280 mm
Working surface size of basic plate: 450 mm
Diameter of:
  -Hole for faceplate in the basic plate: 160 mm
  -Faceplate: 280 mm
  -Hole in the faceplate: 125 mm
Length of supply and removal of drive: 455 mm
Length of drive:
  -Max: 1365 mm
  -Min: 400 mm

MECHANICS

Speed of working stroke:
  -Max: 11,5 m/min
  -Min: 1,5 m/min
Max speed of reverse stroke: 20-25 m/min
Speed of supply and removal of drive: no lees than 15 m/min

DRIVE, DIMENSIONS and WEIGHT

Feeding electric system:
  -Current sort: Variable three-phase
  -Frequency: 50 Hz
  -Voltage: 380 V
Overall power of electric motors: 18,74 kW
Pump performance of:
  -Main drive: 200 l/min
  -Auxiliary drive: 25 l/min
  -Cooling: 45 l/min
Tank capacity: 860 l
Dimensions: 6340х2090х1910 mm
Weight with electric equipment: 5200 kg
