Offer #1139

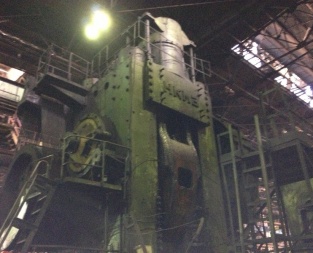

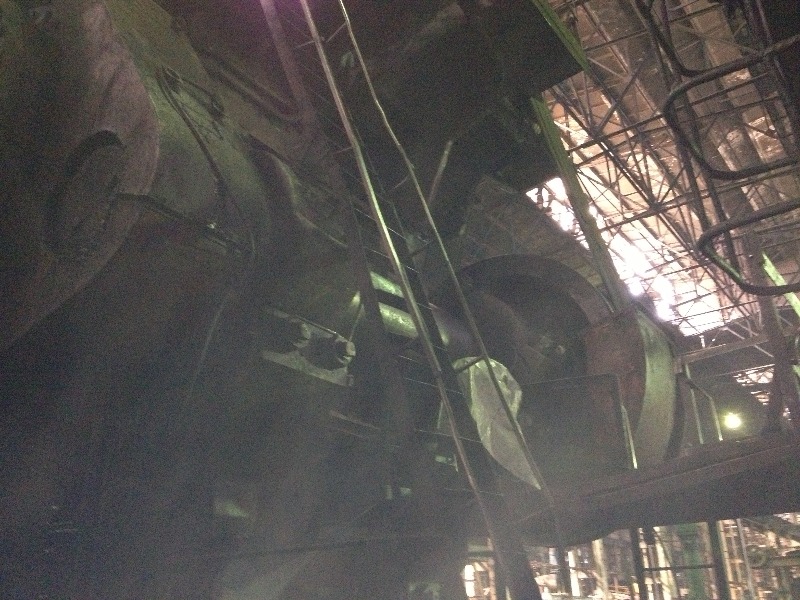

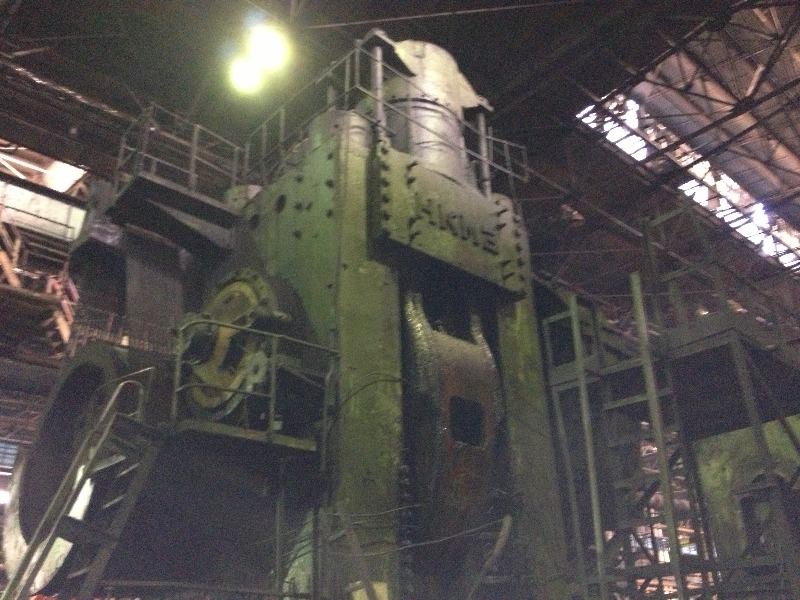

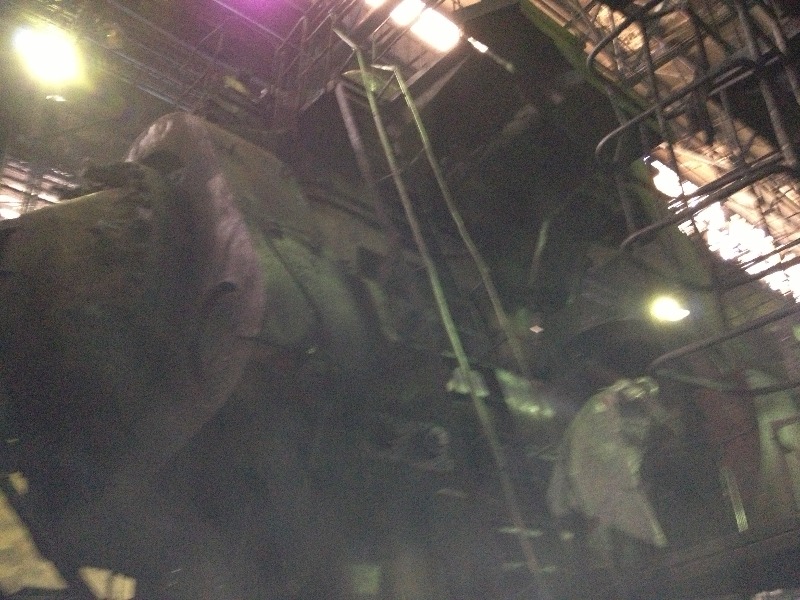

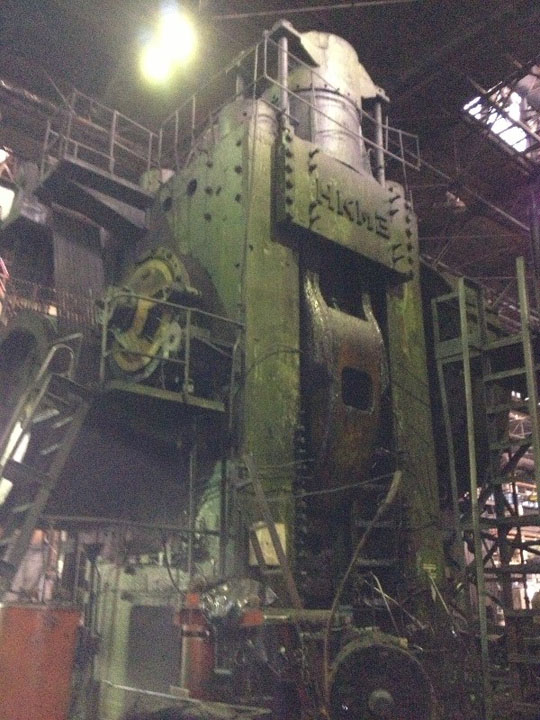

Hot forging press NKMZ K8548
YOM: 1964
Manufacturer: NKMZ
Made in: Ukraine
Specification:
Nominal force: 6300 tons
Number of continuous strokes per minute: 40
Ram stroke: 460 mm
Distance between ram and table (table is in upper position): 1150 mm
Table adjustment: 15 mm
Distance between press columns: 1950 mm
Ram dimensions:
-Front to back: 1680 mm
-Left to right: 1680 mm
Table dimensions:
-Front to back: 1950 mm
-Left to right: 1920 mm
Mechanical upper ejector:
-Maximum stroke: 100 mm
-Number of positions: 1
-Steps of stroke adjustment: 25-30-75 mm
-Force: 30 tons
Pneumatic lower ejector:
-Maximum stroke: 300 mm
-Stepless stroke adjustment: 15-300 mm
-Number of positions: 3
-Force: 65 tons
Side windows dimensions:
-Width: 1100 mm
-Height: 1280 mm
Main motor: 400/590 kW/rpm
Press layout dimensions: 6300x8965 mm
Total height: 11125 mm
Height above floor level: 9150 mm
Total weight: 626100 kg
