Offer #882

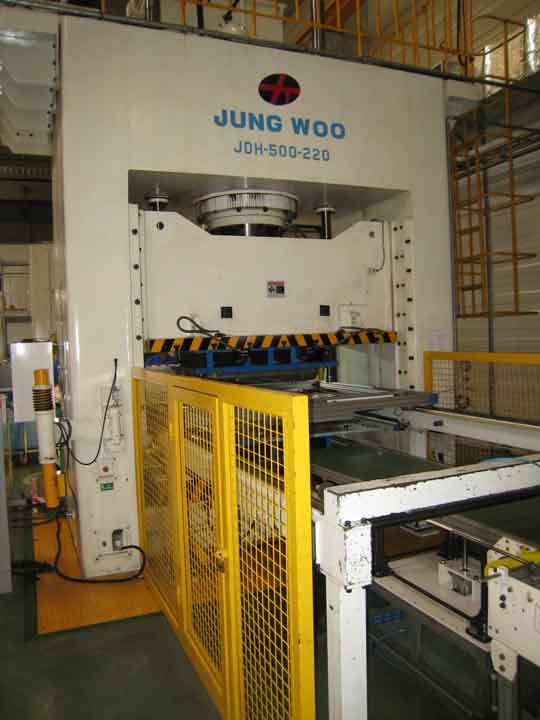

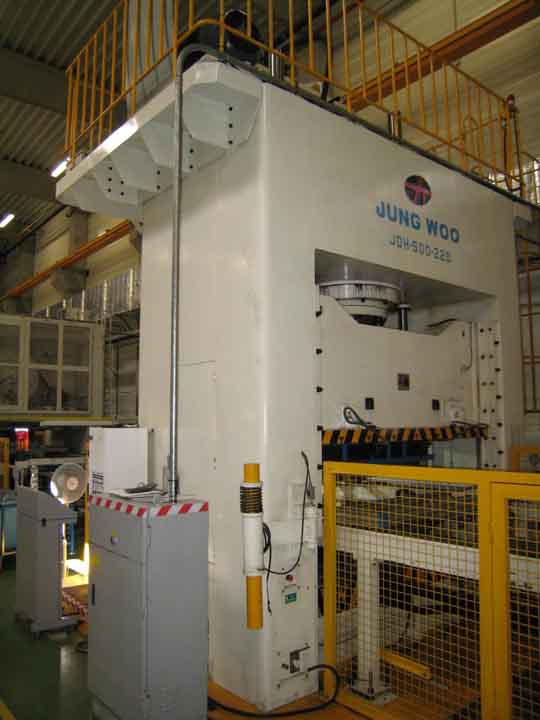

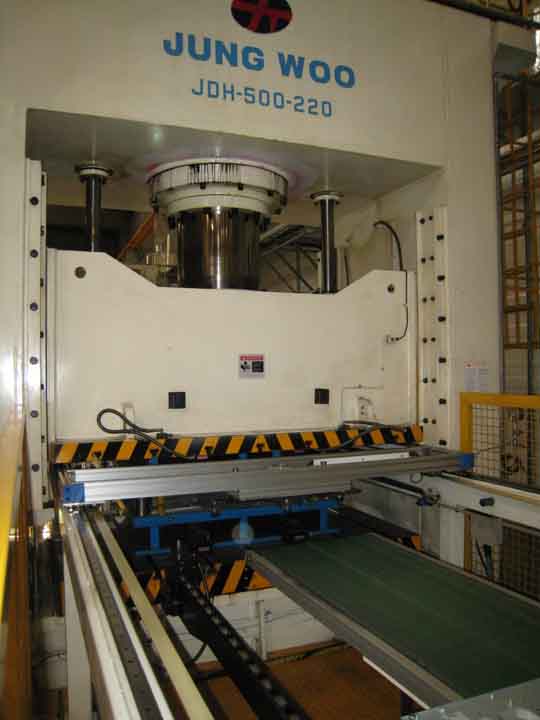

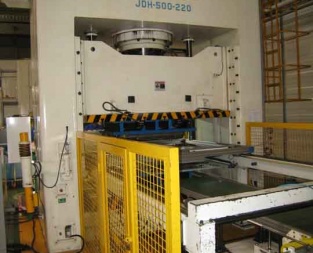

Closed hydraulic press JUNG WOO mod. JDH-500-220
YOM: 2006.04
Manufacturer: Jung Woo
Made in: South Korea

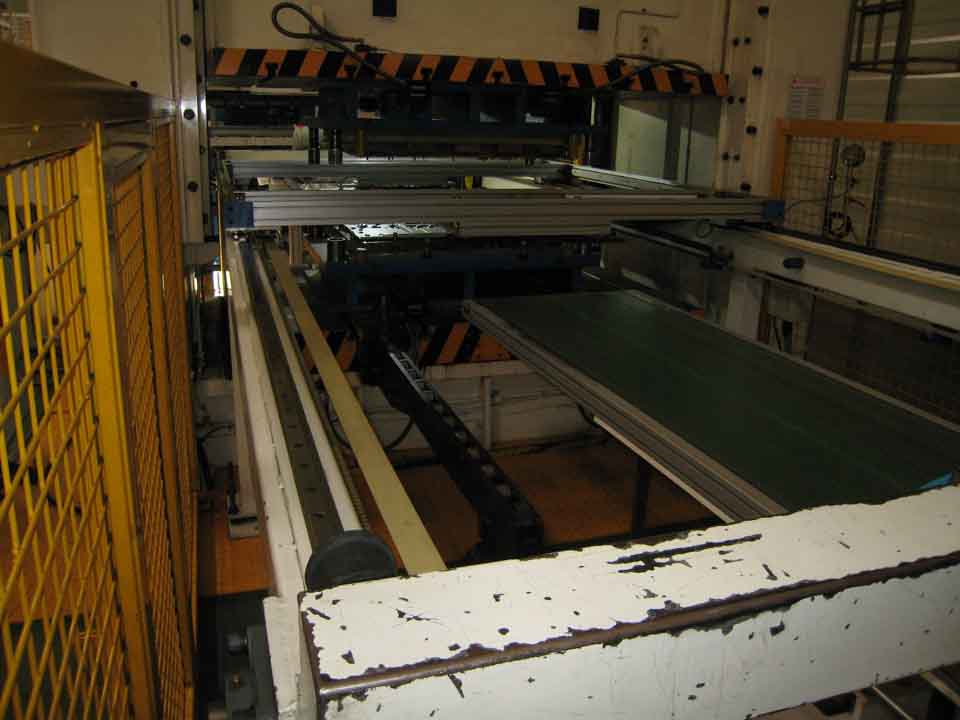

Accessories: Laser device for a sheet metal feeding for additional fee.
Specification:
Capacity: 500 tons
Work-piece height: 1000 mm
Working pressure: 210 kg/cm²
Lifting capacity: 32 tons
Stroke length: 600 mm
Day light: 1000 mm
Bolster area (LR x FB): 2200x1500 mm
Slide area (LR x FB): 2200x1500 mm
Speed:
-Descending: 180 mm/sec
-Pressing: 10 mm/sec
-Slow ascending: -
-Ascending: 150 mm/sec
Main pump: Gear pump
Main motor: 45 kW
Control voltage: 110 V
Power voltage: 400 V
Oil tank capacity: 1600 l
Press weight: 51000 kg
