Offer #2009

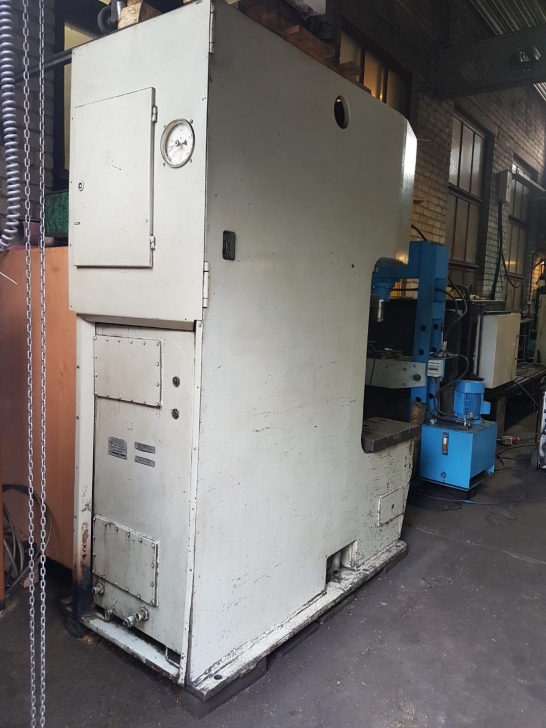

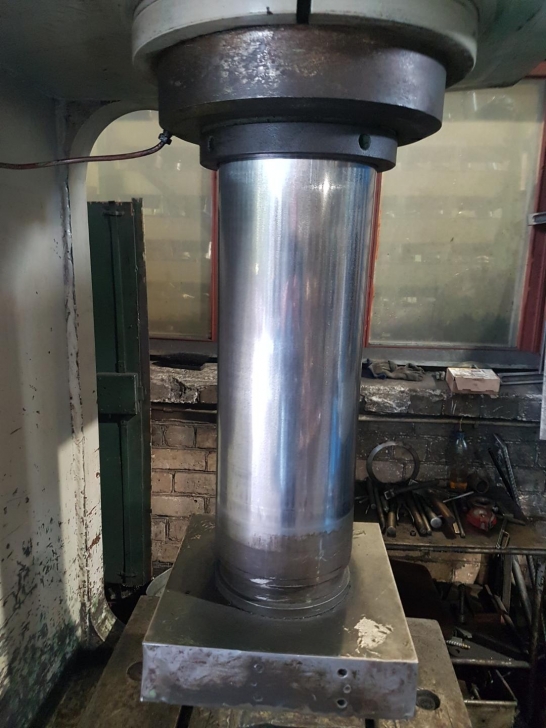

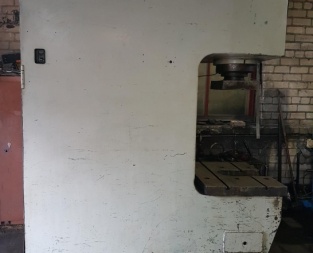

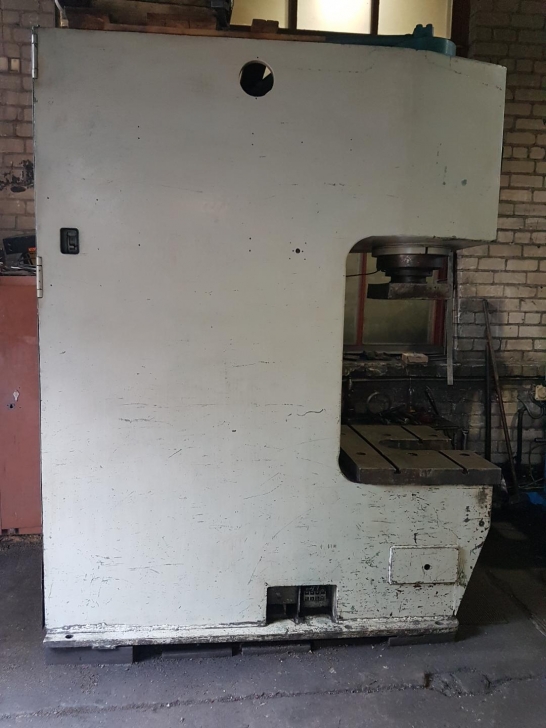

Hydraulic single-column press P6334
YOM: 1981
Manufacturer: JSC Tyazhpressmash
Made in: Russia

Specification:

Nominal press force: 250 t
Max. rod stroke: 500 mm
Max. distance between table and rod - open press height: 800 mm
Distance between rod axis and bed: 400 mm
Rod speed - working stroke: 4.5 mm/sec
Rod speed - idle stroke: 29 mm/sec
Rod speed - reverse stroke: 70 mm/sec
Table dimensions: 1000 х 630 mm
Dimensions of table opening: 200 х 415 mm
Dimensions of removable levelling table: 2500 х 600 mm
Weight of removable levelling table: 960 kg
Weight of levelling tool: 195 kg
Table height above floor level: 745 mm
Nominal fluid working pressure: 250 kg/cm2
Electrical equipment
Number of electric motors: 1
Main drive electric motor: 18,5 kW

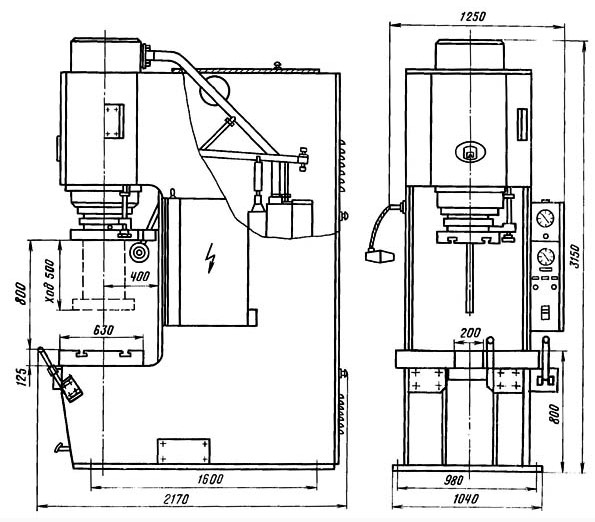

Dimensions and weight of the press
Dimensions of the press (length width height): 1250 х 2170 х 3150 mm
Machine weight: 10940 kg

Description:

Universal hydraulic single-column presses are designed to perform a wide range of technological operations of mounting and pressing, sheet stamping, broaching and some others.
