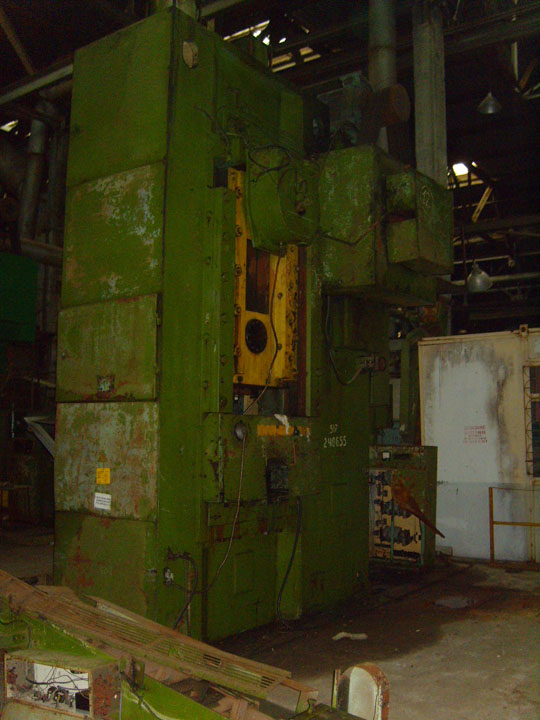

Knuckle joint cold extrusion press BARNAUL KB0038

Offer #1344

Knuckle joint cold extrusion press BARNAUL KB0038
YOM: 1993
Manufacturer: BARNAUL
Made in: Russia

Specification:

Max. capacity: 630 tons
Slide stroke: 300 mm
Slide strokes per 1 min: 25
Bolster plate to ram adjustment stroke: 20 mm
Shut height: 700 mm
Bed dimensions: 1250x1250 mm
Lower ejection stroke: 170 mm
Lower ejection force: 80 tons
Upper ejection stroke: 25 mm
Upper ejection force: 25 tons
Main drive motor power: 75 kW
Dimensions: 4710x2430 mm
Height of press: 6000 mm
Total weight: 64000 kg
