4-crank single-action press KA4537

Offer #1967

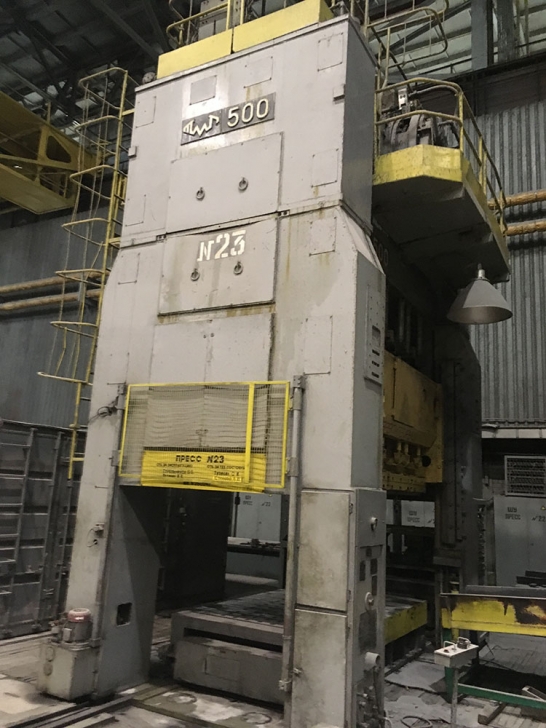

4-crank single-action press KA4537
Manufacturer: TMP
Made in: Russia

Quantity: 5 units

Specification:

Nominal force: 500 tons
Rated distance of slide above bottom: 12 mm
Slide stroke: 630 mm
Frequency of continuous slide strokes per minute: at least 24
Max. frequency of single slide strokes per minute: 18
Shut height: 1230 mm
Adjustment size of shut height: 500 mm
Bolster plate dimensions:
 -Left-to-right: 3150 mm
 -Front-to-back: 1800 mm
Slide dimensions:
 -Left-to-right: 3150 mm
 -Front-to-back: 1800 mm
Main drive electric motor power: 90 kW
Press dimensions:
 -Left-to-right: 5500 mm
 -Front-to-back: 4550 mm
 -Height above floor: 7540 mm
