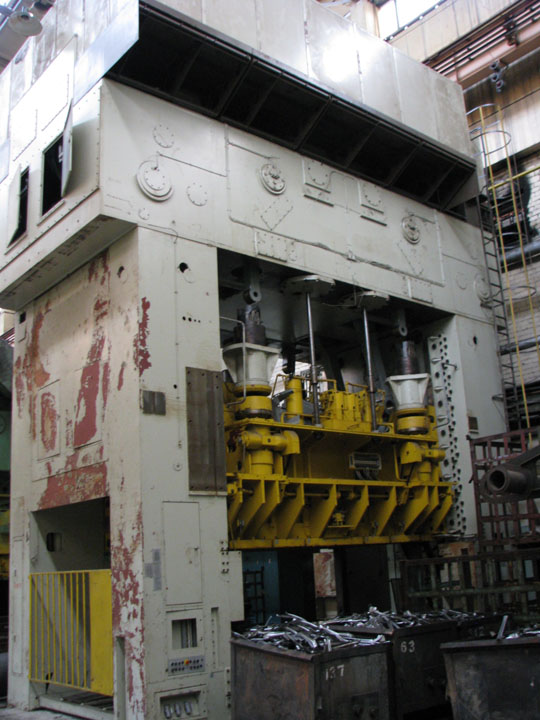

Straight side double action sheet stamping press ERFURT PD 4-HH-1000+630 FS

Offer #1296

Straight side double action sheet stamping press ERFURT PD 4-HH-1000+630 FS
YOM: 1997
Manufacturer: ERFURT
Made in: Germany

Specification:

Max. effort of internal slide at the 25 mm distance to the lower dead point: 10000 kN
Max. effort of internal slide at the 350 mm distance to the lower dead point: 10000 kN
Approx. stroke of internal slide: 900 mm
Max. effort of external slide at the 10 mm distance to the lower dead point: 6300 kN
Approx. stroke of external slide: 700 mm
Number of single courses per minute, adjustable: 8-16
Closed height of internal slide:
 -Min.: 1450 mm
 -Max.: 1800 mm
Closed height of external slide:
 -Min.: 1350 mm
 -Max.: 1700 mm
Table pillow:
 -Max. stroke: 250 mm
 -Max. holding effort: 400 kN
 -Max. ejection effort: 400 kN
Main electric motor power: 197 kW
Max. slide speed in extract range: 400 mm/sec
Main overall dimensions:
 -Width between columns: 4600 mm
 -Slide stroke of extract press: 900 mm
 -Slide stroke of sheet holder: 700 mm
Max. extract depth: 350 mm
Adjustment of both slides: 350 mm
Height of moving table: 650 mm
Table area: 4600x2200 mm
Slide area of extract press: 4000x1600 mm
Slide area of sheet holder: 4600x2200 mm
