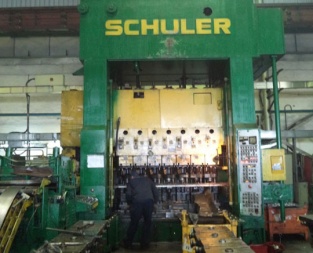

Automatic transfer press SCHULER T2-300-3-305

Offer #1242

Automatic transfer press SCHULER T2-300-3-305
YOM: 1969-73
Manufacturer: Schuler Pressen
Made in: Germany

Quantity: 2 units

Specification:

Max. sheet width: 630 mm
Min. sheet width: 125 mm
Max. external diameter of sheet roll: 1800 mm
Max. internal diameter of sheet roll: 800 mm
Min. internal diameter of sheet roll: 490 mm
Max. weight of sheet roll: 12 tons
Max. sheet thickness: 4 mm
Min. sheet thickness: 0,8 mm
Levelling device:
 -Max. sheet width: 630 mm
 -Max. sheet thickness: 4 mm
 -Number of levelling rollers above: 4
 -Number of levelling rollers below: 3
Press force at the 12,5 mm distance to the lower dead point: 300 tons
Number of slide strokes per minute (stepless, adjustable): 12,5-25
Slide stroke: 255 mm
Slide shift: 200 mm
Tool holder shift: 12,7 mm
Max. extract depth: 90 mm
Clamping plate thickness: 150 mm
Height of lower parts of tool: 350 mm
Passage in the table: 250x500 mm
Passage in the clamping plate: 245x480 mm
Main motor: 800-1600 rpm, 21 kW
Servo motor of slide: 1500 rpm, 4 kW
