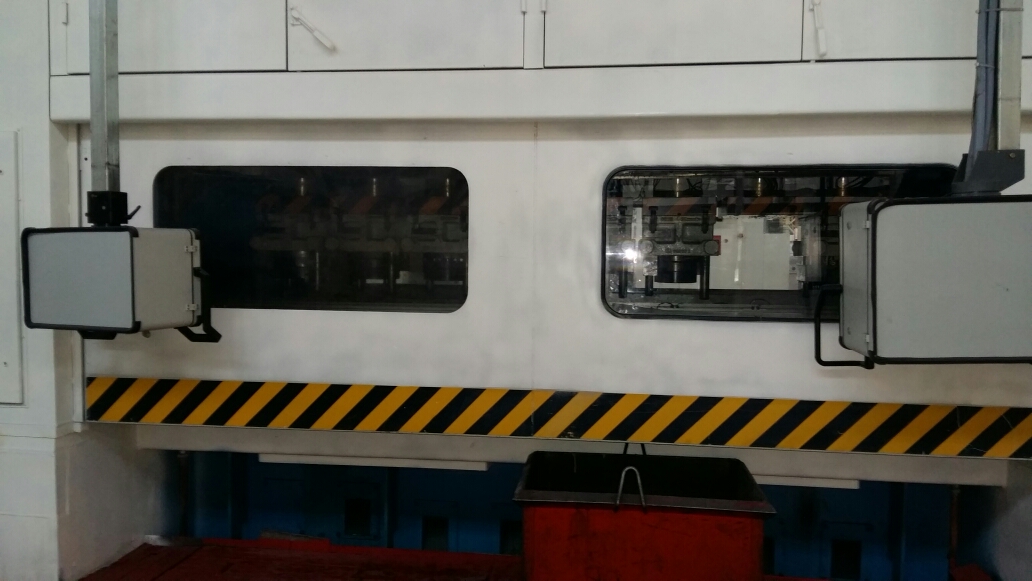

Multipositional transfer press ERFURT PSt-0-II 100-700/1+8/450/320/NC

Offer #1660

Multipositional transfer press ERFURT PSt-0-II 100-700/1+8/450/320/NC
YOM: 1995
Manufacturer: ERFURT
Made in: Germany

Specification:

Distance between columns: 4250 mm
Distance between upper floor edge and fixing table plate: 700 mm
Closed height (stroke down, adjustment up): 850 mm
Transportation level above fixing table plate: 500 mm
Fixing area of the table:
 -Width: 3600 mm
 -Depth: 1000 mm
Fixing area of the cutting position:
 -Width: 1400 mm
 -Depth: 1200 mm
Extract slide:
 -Stroke: 320 mm
 -Depth of extract: 120 mm
 -Width (fixing area): 3600 mm
Cutting slide:
 -Stroke: 160 mm
 -Width (fixing area): 800 mm
 -Depth (fixing area): 800 mm
Distance between dies: 450 mm
Number of working positions between side columns: 8
Number of working positions beyond side columns: 1
Max. work-piece diameter:
 -At one-time cutting: 440 mm
 -At two-time cutting: 315 mm
 -At three-time cutting: 215 mm
Strip thickness: 0,2-2 mm
Strip width: 100-600 mm
Total pressing force: 8000 kN
Pressing force between columns (10 mm to the lower dead point): 7000 kN
Pressing force between columns (5 mm to the lower dead point): 1000 kN
Number of working strokes per minute (steplessly adjustable): 12-36
Clamshell feed: 450 mm
Total power required: 200 kW
Voltage: 380 V, 50 Hz
Press dimensions:
 -Height: 7200 mm
Press weight: 180 tons
