Offer #1528

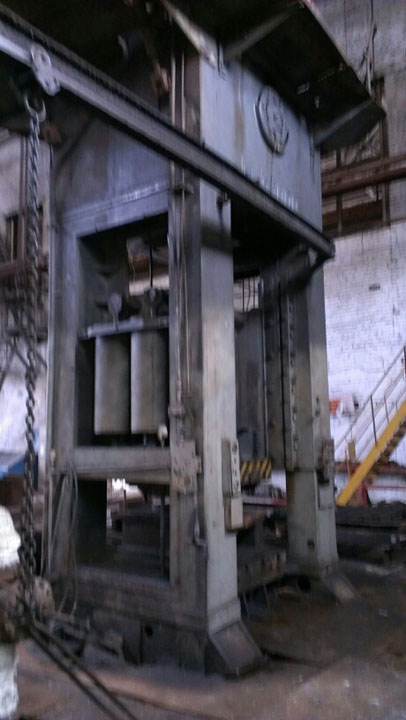

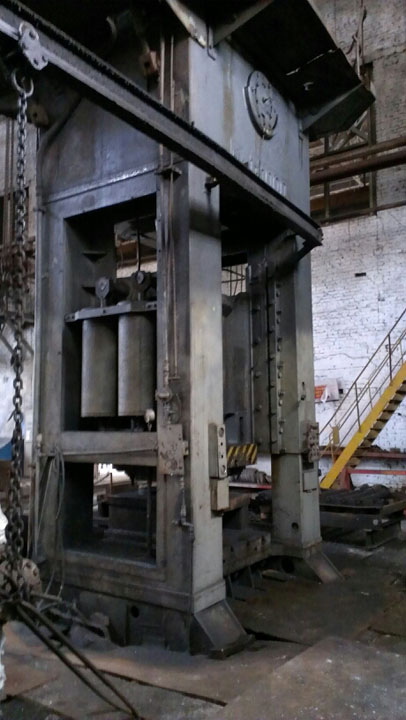

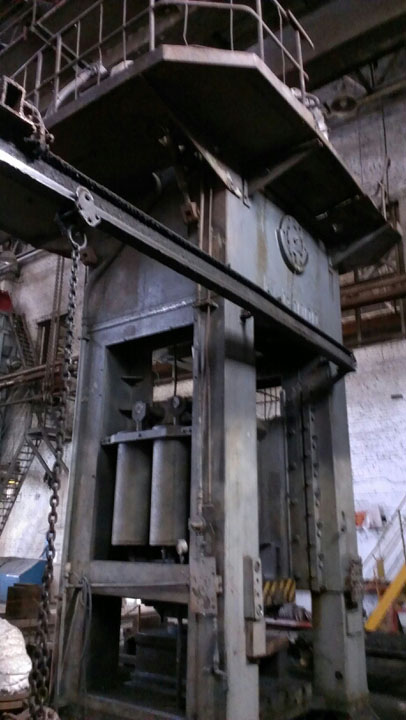

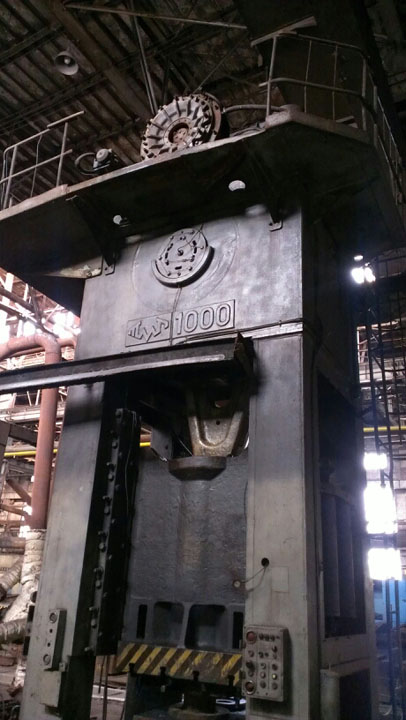

Trimming press VORONEZH K9540
YOM: 1983
Manufacturer: Voronezh
Made in: Russia
Specification:
Capacity: 1000 tons
Slide stroke: 500 mm
Number of continuous strokes per 1 min: 20
Max. distance between bolster plate and slide: 680 mm
Adjustment: 200 mm
Table (bolster plate) dimensions:
-Left to right: 1250 mm
-Front to back: 1250 mm
Slide dimensions:
-Left to right: 1265 mm
-Front to back: 1250 mm
Main motor power: 75 kW
Dimensions:
-Left to right: 4310 mm
-Front to back: 3870 mm
-Height above floor level: 6980 mm
Machine weight: 84000 kg
