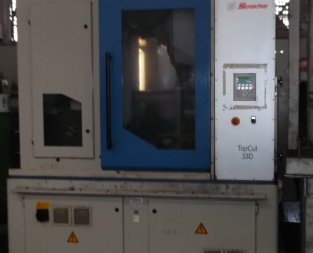

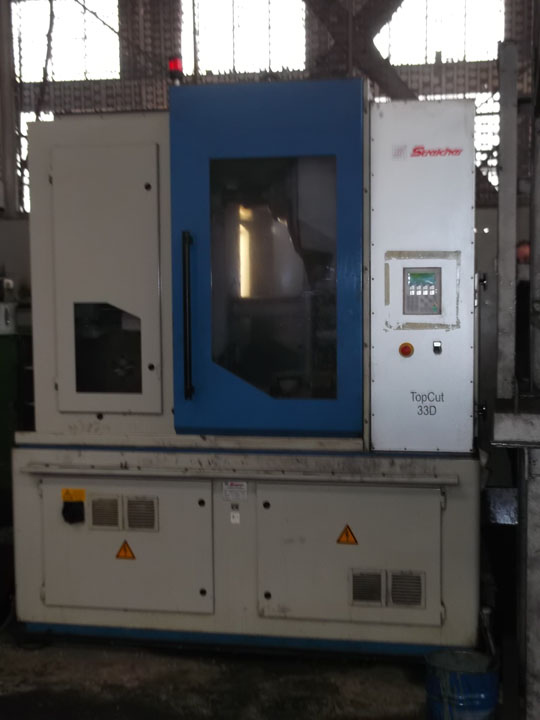

Automatic thread cutting machine STREICHER TOP-CUT 33D

Offer #1514

Automatic thread cutting machine STREICHER TOP-CUT 33D
YOM: 2009
Manufacturer: STREICHER
Made in: Germany

Specification:

Thread size: M10-M33
Max. external work-piece diameter: 60 mm
Max. width across flats: 50 mm
Drive power of spindle motor: 13,2 kW
Range of rotation frequencies: 200-1600 rpm
Max. productivity per hour:
 -Tetrahedral/hexagonal nuts: 5640 pcs
 -Flange nuts: 3200 pcs
 -Round nuts: 3200 pcs
Reserve of cooling liquid: 330 l
Productivity of pump for cooling liquid: 100 l/min - 0,2 bar
Required atmospheric pressure: 5 bar
Max. allowed temperature of environment: 35˚C
Machine dimensions:
 -Length: 2100 mm
 -Width: 1450 mm
 -Height: 2500 mm
Machine weight: 4550 kg
